Porsche 944 Track Car

Porsche Track Car Part 28 – Oil Pan Update

It has been a while since I have posted.  That is due to a killer work schedule and no activity at all with the track car.  But the killer work schedule has come to an end and I am back to some semblance of a normal life.

Based on some advice, I obtained a oil pan from a later model 944 from Ebay.  I had been told it might help avoiding spun rod bearings.  The oil pan is similar to one I have with a few key differences.  There are “crank scrapers” built into the pan.  A crank scraper is designed to strip the “cloud” of oil that rotates along with the crank and is a drag racer trick to free up a few horsepower.  In the case of the 944, I think Porsche did this to reduce the air entrainment into the oil.  As I have speculated previously, oil with entrained air is detrimental to the #2 rod bearing, since the air goes around the 90 degree corner of the oil passage better than the liquid oil, causing the #2 bearing (and the #3 bearing to a lesser extent) to get too much air and not enough oil.

Whatever, pictures of my existing pan and the new pan are below, which show the differences.

I had wanted to change out the rod bearings after 1 season (and 50 hours on the hour meter) of track time.  I put the car up on the lift and added an alternate suspension for the engine (fancy language for a large board across the fenders and a sling around the manifolds.  I then proceeded to remove the suspension and engine cradle.  Then I removed the old oil pan.  I replaced the rod bearings with new ones and retorqued the nuts to 75 nm.  I also double checked the torque on the various nuts on the bottom end of the engine.

Here are some pictures of the rod bearings.  I’m not an expert on signs of bearing wear.  They aren’t pristine but none look to bad either.

DSCN0059 DSCN0058

Next I carefully cleaned out the new oil pan.  Some previous owner had mounted a one way trap door baffle in the pan.  I test fit the pan and everything seemed OK. Then I mounted it with all the bolts and torqued them to spec. After mounting the pan I carefully rotated the crankshaft, possibly expecting the scrapers to hit the crank. I heard nothing but silence so gather that the newer pan plays well with the older engine and crankshaft.

These things are frustrating.  Is 50 hours of hard track use without any rod bearing failures because I have done something right and just because?  I’ll never know. One thing I do know.  A track weekend cut short due to mechanical problems SUCKS!!!  So I’m going to do whatever I can to improve the odds of an event free weekend.

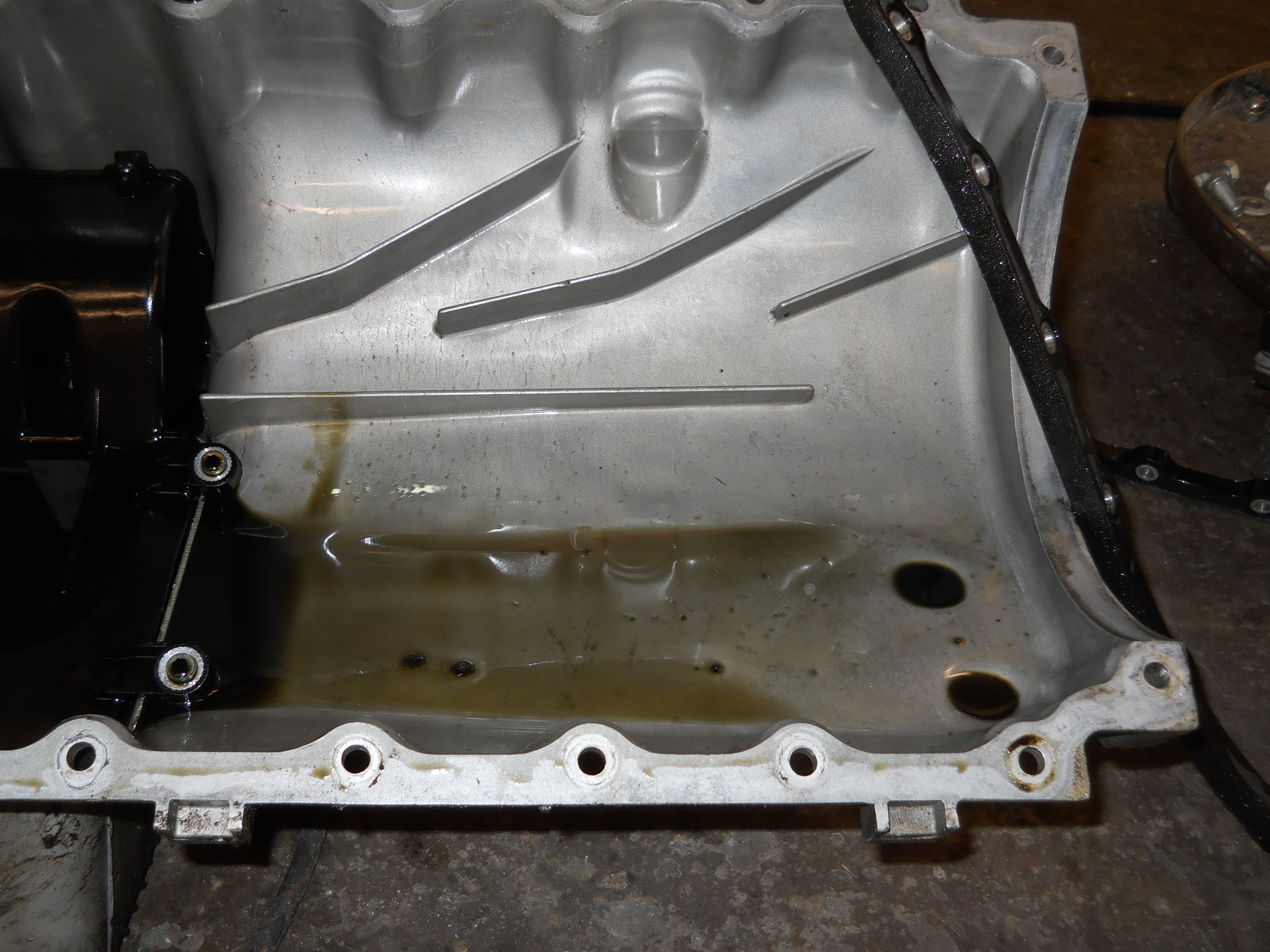

DSCN0028

This is the pan that came with the 1985 vintage engine.  Note that the fins in the bottom of the pan are a constant height.

DSCN0030

Here is the pan from a newer car.  Note the modified profile of the nearest fin.

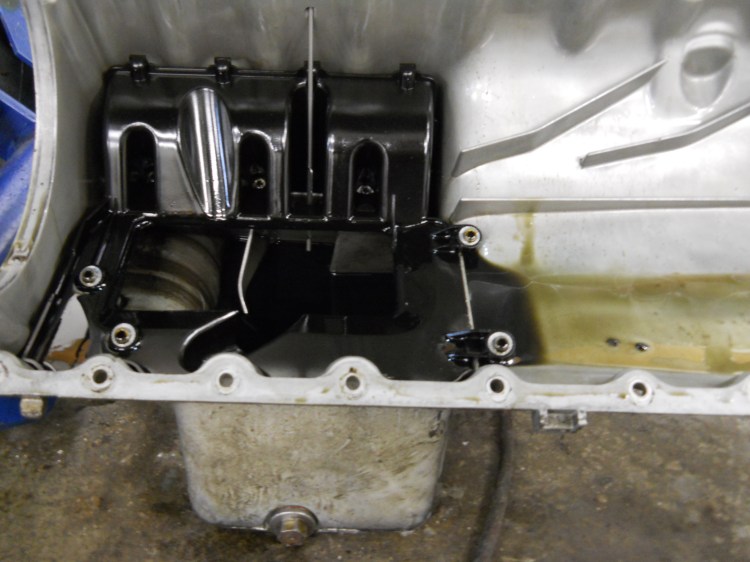

DSCN0029

Here is the baffle on the old oil pan.

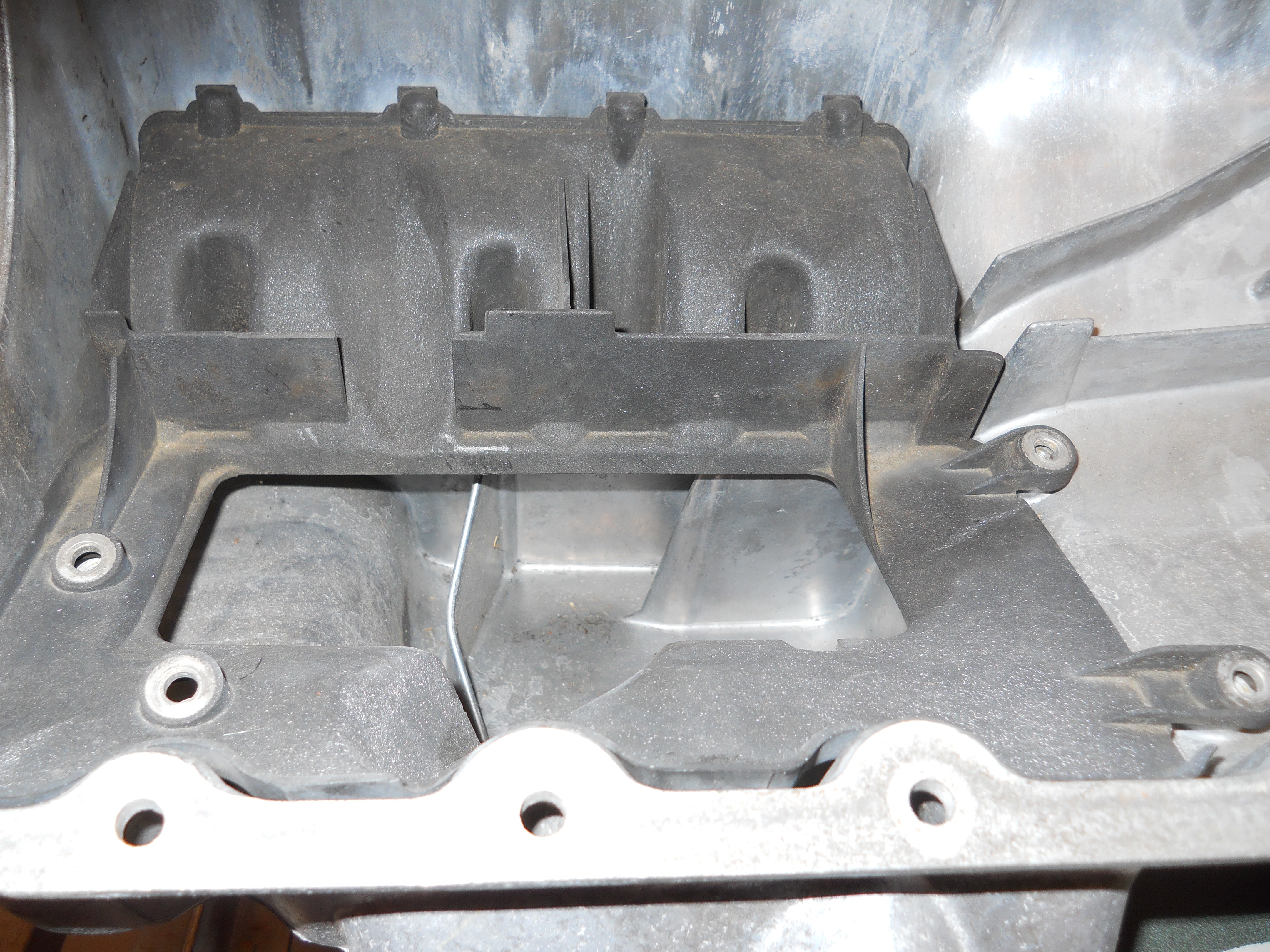

DSCN0032

Its a little hard to see but the plastic baffle also has a built in scraper.

The part number on the new pan is 944.101.201.

Advertisements

Discussion

2 thoughts on “Porsche Track Car Part 28 – Oil Pan Update

  1. i noticed your new pan part number ended in 201, fornd pans w/ the same # but with 8r, 12r etc at the end. does it srtickly end w/ 201 or do the additional 8r 12r, etc make a difference

    Posted by Tim Chambers | April 15, 2013, 3:19 pm
    • I’m not that knowledgeable about part numbers. I using start by reviewing the factory PET (parts lists) for guidance. They are provided directly by Porsche but there is an easy link on the main page of the Pelican Parts website.

      Posted by newhillgarage | April 16, 2013, 12:14 am
