Porsche 928

Porsche 928 Care and Feeding – Top End Refresh

A fairly standard maintenance action for the Porsche 928 is to refresh the top end.  In simple terms, there are a lot of rubber hoses and gaskets surfaces that reside in the “V” between the cylinder heads that can become worn out and possibly dangerous due to the long term degradation from the heat and vibration.  So by doing a top end refresh you at minimum may wind up with a better running car and possibly you will save you and your car from the flames of a gasoline fire due to a failed fuel line.  Remember, these cars are 25+ years old and although very well engineered, there is a limit to how long the various materials used can hold up.  So if you don’t know if your car has every had a top end refresh, it is a good idea to do so now.

From a big picture standpoint, I wanted to replace the rubber vacuum lines, the fuel hoses, the rubber coolant lines, the spark plug wires, and any gaskets exposed as a result of dis-assembly of the parts and pieces.  Plus there were a few items such as the temperature sending unit and spark plugs that are easy to change while you are in there.  A bonus motivation was that I would replace all the o-rings in the AC system piping while I was in there, in an attempt to resolve a slow refrigerant leak.

The previous owner had already done a top end refresh a few years ago.  Based on his parts invoices, there were some items that I did not need to replace.  But there remained a significant number of items that had not been replaced, probably due to cost.  The most expensive replacement items by far were the critical fuel lines.  I decided to go big and get the Greg Brown fuel lines.  They are a very high quality piece of kit! I purchase the vast majority of my parts from Roger at 928SRUS.  Roger is pleasant to deal with, is quite knowledgeable, and does a good job of striking a balance of cost versus practicality.

There are some excellent tutorials on Rennlist, etc. about the details of this job so I won’t cover that ground again.  I would especially recommend Dwaynes Garage if you want very detailed well written instructions on this and other jobs.  Another one that comes recommended is by Mike Fry here.  I’ve posted a parts list below so you can get an idea of the items involved and their cost.  I didn’t add up the total cost of the parts but you can easily do the math and see that it added up to several thousand dollars.  On one hand that would seem to be a lot of money.  But we are talking about a Porsche and I bet you would find comparable prices or worse for comparable cars such as BMW, Mercedes, Jaguar, and Lexus.  And let’s all be thankful we’re not working on a Ferrari!

I’ve posted pictures too, although frankly it’s a little bit of jumble until you get familiar with what you are looking at.  The engine compartment can be pretty intimidating but all I can say is take a ton of digital photos as you go and you’ll be all right.

One item I decided to do was get my fuel injectors checked and cleaned.  One of the few shops in the US that do this is WitchHunter Performance.  You send your injectors to them and they clean them and check them for proper function.  In my case, 7 of them were doing pretty well and one had a bad leak.  This one had to be replaced.  I am expecting a modest improvement in fuel economy.  (Update- my fuel economy actually went down from 21 mpg to 19 mpg highway.  Go figure!)

Two other items that I would recommend for replacement, that I had already replaced last year, are the Crank Position Sensor (CPS) and the sending unit for the coolant temperature to the CPU.  In particular, I found the 3 wire plug for the CPS and the throttle position sensor to be crumbling.  Not a good thing.  Strangely, the harness end of these plugs seems to be in much better shape. Regardless, replacing the entire engine wiring harness is on my short list of things to do next.

One thing I did was remove 1 of the 2 throttle return springs on my throttle.  My car requires a lot of pedal pressure to get things moving. I checked for frayed cables and binding connections and found none.  Taking out the one spring made in my opinion a nice improvement in the throttle effort.

One of the toughest areas I ran into was reconnecting the intake plenums.  I see that the 1986.5 plenum looks different from later models.  I found it to be quite fiddly to get all the open ends lined up close enough that they could be connected with the various rubber boots.  It pays to take your time with this step.  Well, actually I got to practice this step 3 times!  Once you get the plenums installed, some connections become inaccessible.  As I remember, I took it apart once to get at a fuel line connection that wasn’t tight and I took apart again to get at a vacuum connection that I missed tightening.

I resisted the temptation to re-finish the manifolds this time.  When I get ready to fully detail the engine compartment everything will come apart again.   I was gratified that the car started right up after my efforts (after I got the 2 leaks fixed)!

Another update- after a few weeks in service, I determined that the shaft seal on the A/C compressor had a slow leak.  When my static system pressure dropped from 90 psi to 40 psi, I threw in the towel and ordered a re-manufactured compressor from Roger.  And 2 new hoses.  Knock on wood but the system is blowing cold now!

Intake manifold taken off

Intake manifold taken off

Opposite hand view.  White spots are paper towels stuffed into intake openings.

Opposite hand view. White spots are paper towels stuffed into intake openings.

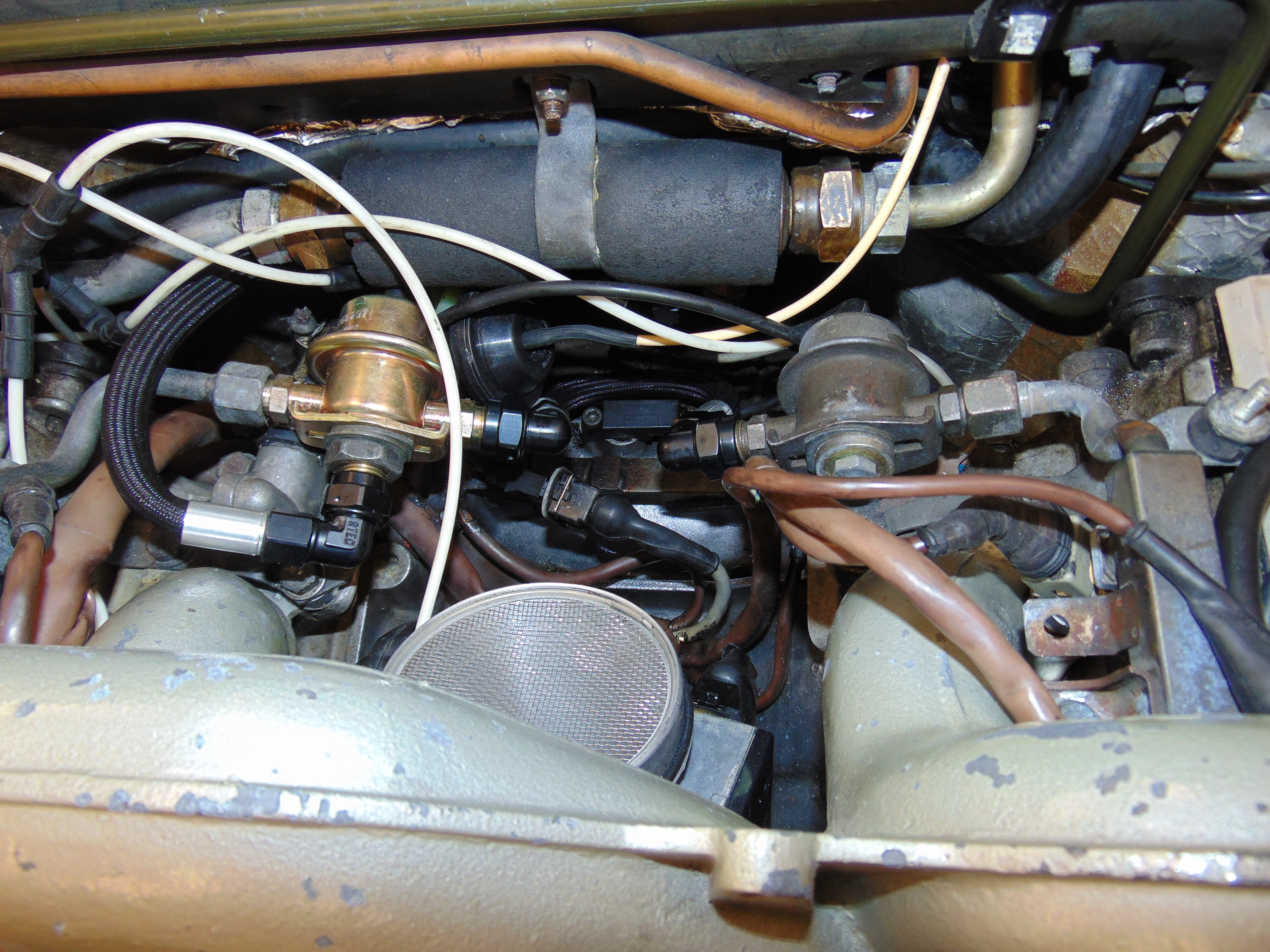

Black braided Greg Brown fuel lines at fuel cooler area at rear of engine.

Black braided Greg Brown fuel lines at fuel cooler area at rear of engine.

Everything back together.

Everything back together.

Porsche 928

Spring 2015 Major Service

Mileage:

Service performed by Harvey Ferris



Maintenance Action Comments Parts Cost
Replaced spark plugs Bosch WR7DC – torqued to factory spec $22.00
Replaced spark plug wires Beru – threaded ends- includes coil wiresVerified acceptable resistance from distributor to plug, including original spark plug connectors i.e. original connectors SAT $155.00
Replaced coolant hoses 928 574 573 03 Heater valve, Mercedes original928 106 238 08 Upper radiator hose

928 106 239 09 Lower radiator hose

928 106 321 04 Y pipe Tstat housing hose

928 106 275 03 Small hose from Tstat to reservoir

928 574 567 03 Engine to heater valve

928 574 587 03 Heater core (inlet) to heater valve

928 574 589 04 Heater core (outlet) to metal pipe

928 106 323 01 Hose, reservoir to metal Y pipe

928 106 277 02 Hose, radiator to reservoir

999 181 709 50 Hose, pressure switch to radiator

$28.75$27.95

$25.00

$59.22

$19.42

$10.70

$18.95

$23.00

$18.00

$10.00

$27.20

Replaced selected vacuum hoses Reviewed previous parts list from Joel Roberts. The only vacuum hoses not previously replaced were replaced now.928 107 445 00 Right front cam cover to oil filler neck

928 110 432 00M Right rear cam cover to breather connection

928 110 128 01 Temp sensor



$37.74

$25.00

$36.39

Replaced selected fuel hoses 928 110 269 01 Front Fuel Hose928 110 271 02LT Damper to regulator U hose – Greg Brown

928 110 359 04LT Fuel hose – Pressure regulator to fuel cooler

(Teflon/Kevlar/Crimped Lifetime guaranty)

928 110 198 04 Fuel pressure regulator

Other hoses replaced previously by Joel Roberts

$51.72$165.00

$189.00



$168.95

Replaced harness from throttle position sensor Confirmed TPS signal at closed position and WOT928 607 115 00JDS $69.95
R&R fuel injectors Witchhunter – 1 injector bad, replaced, see below928 606 120 00 Injector $164.00$140.00
R&R air intake system 928 110 566 04 Intake manifold gasket

928 107 707 04 Oil filler base gasket

928 512 539 01 Clamp, sleeve, air filter to air mass meter

$11.50

$10.90

$4.48

R&R A/C refrigerant lines Disconnected all lines, flushed all lines. Add 12 oz POE to compressor. Replaced all O-rings. Replaced compressor due to leak at front seal. Replacing soft lines to compressor. Evacuated system. Verified leak free. Re-charged with R12 (3 cans ~ 36 oz)3 cans R12

AC-8386F A/C O-ring set

944 126 935 01 A/C compressor O-rings

928 573 941 03 Receiver Dryer

928 126 010 06D Compressor Denso remanufactured

928 573 097 07 A/C Pressure hose

928 573 098 04 A/C Suction Hose

AC59346 AC valve core Schraeder valves







$105.00

$14.50

$7.20

$42.00

$465.00

$129.95

$162.38

$4.00

R&R Power Steering 928 347 015 05 Power steering reservoir $22.00
Replace rear muffler Replaced with used unit from 928s InternationalUsed new hangers. $181.93
Replace fuel filter 928 110 253 06 $19.95
Oil/filter change 928 107 201 05 Oil filterOil, Mobil 1 , 15W50 $8.55
Replaced coolant Drained entire system, including block drain plugs2 gals Zerex
Replaced transaxle fluid, drain plugs 4 qts. Valvoline 75-90Drain plugs $40.00$24.00
Replaced air filter 928 110 185 03 $37.75
Miscl Used screw on L boots for ignition wires at distributorPressure switch (near coolant reservoir) $70.95
